UCLA graduate student researcher Luyao Xu, first author of research demonstrating a VECSEL in the terahertz range.
Advance could create new class of lasers for possible use in aerospace and law enforcement.
Researchers at the UCLA Henry Samueli School of Engineering and Applied Science have identified a new way to make a semiconductor laser that operates at terahertz frequencies. The breakthrough could lead to development of a new class of high-quality, powerful lasers for use in space exploration, military and law enforcement efforts and other applications.

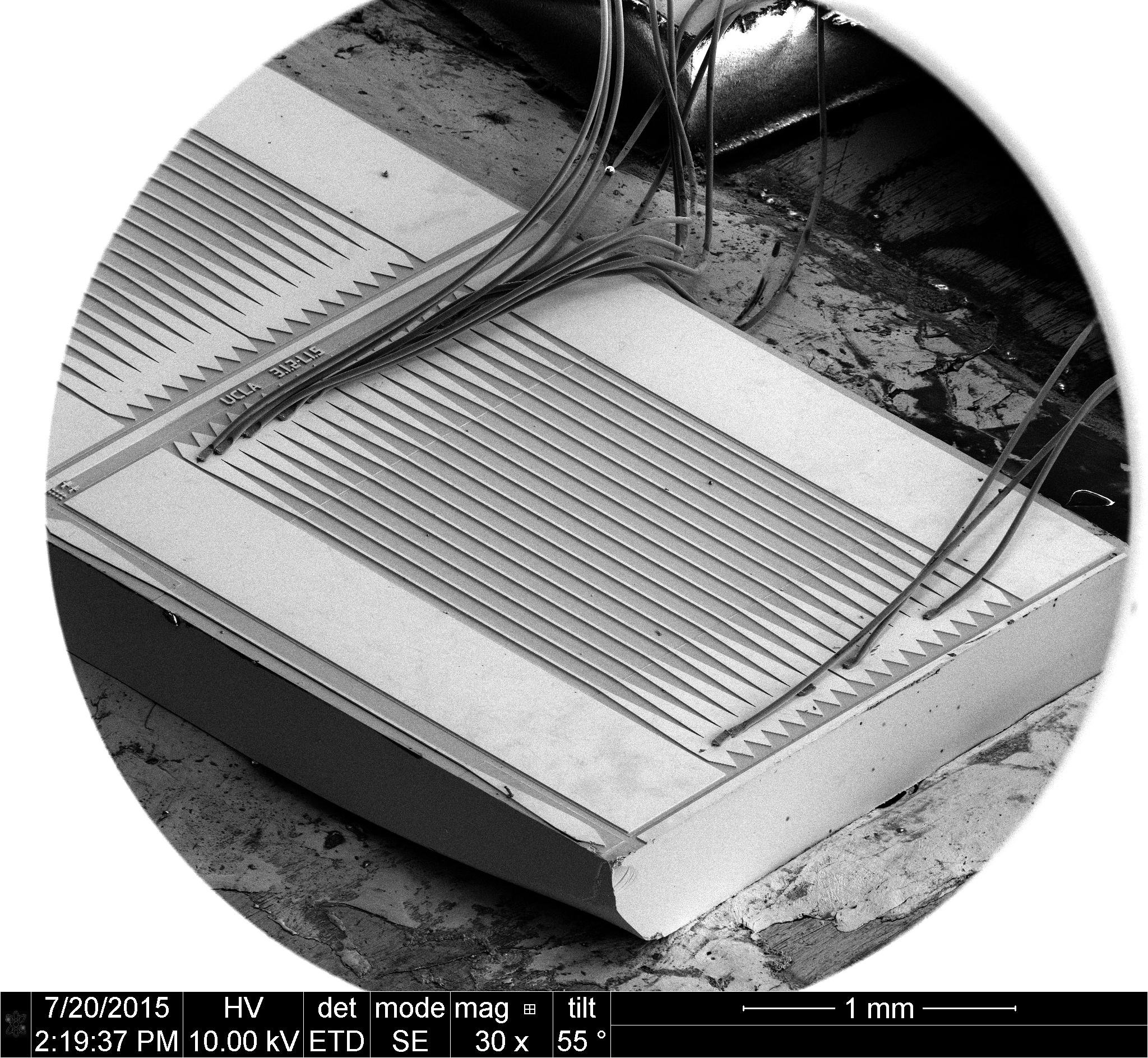

The metasurface developed in Associate Professor Benjamin Williams’ lab for a VECSEL device that works in the terahertz range.
The terahertz range of frequencies occupies the space on the electromagnetic spectrum between microwave and infrared. Terahertz waves can be used to analyze plastics, clothing, semiconductors and works of art without damaging the materials being examined; for chemical sensing and identification; and to investigate the formation of stars and composition of planetary atmospheres.
Researchers led by Benjamin Williams, a UCLA associate professor of electrical engineering, have created the first vertical-external-cavity surface-emitting laser, or VECSEL, that operates in the terahertz range. VECSELs that use visible light have been used extensively to generate high-powered beams, but the technique has not previously been adapted for terahertz frequencies.
To make it possible to build an external cavity laser with a high-quality beam, the UCLA researchers created a VECSEL with a “reflectarray metasurface mirror.” The device is so named because it is made up of an array of many small antenna-coupled laser cavities such that when a terahertz wave hits the array, it doesn’t “see” the cavities, but rather is reflected as if it were being reflected from a simple, flat mirror. Unlike a simple mirror however, the mirror amplifies terahertz waves as well as reflecting them.

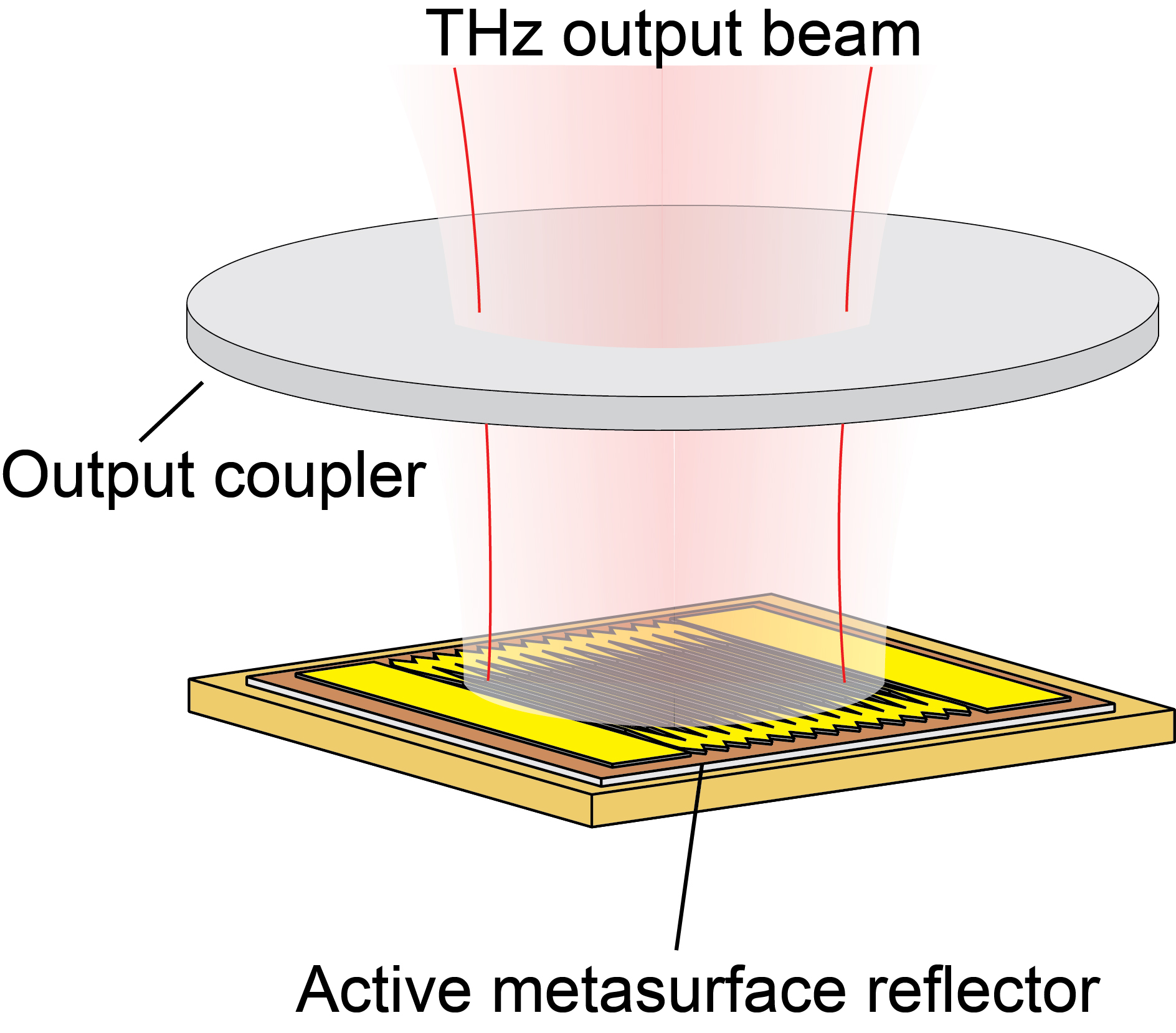

A schematic of the metasurface and polarizer developed in Associate Professor Benjamin Williams’ lab for a VECSEL device that works in the terahertz range.
“This is the first time a metasurface and a laser have been combined,” Williams said. “The VECSEL approach provides a route to have higher output powers simultaneously with excellent beam quality in the terahertz range. The metasurface approach further allows one to engineer the beam to have the desired polarization, shape and spectral properties.”
The research was published this month in Applied Physics Letters.
Creating a beam that is symmetrical and straight over large distances and changing thermal conditions is a challenge for many semiconductor lasers, but particularly for terahertz quantum cascade lasers, which usually use metal laser cavities with dimensions much smaller than the wavelength.
Luyao Xu, a graduate researcher in Williams’ lab and lead author of the study, said, “By using this amplifying metasurface as part of the external cavity, not only can we improve the beam pattern, but we can also introduce new functionality to this laser with different cavity designs. For example, by using a freestanding wire-grid polarizer, or filter, as a second mirror, we could optimize the lasers’ output power and efficiency simply by rotating the polarizer.”
Xu said the researchers already are working on several new designs to further advance the technology.
Other authors of the study were Christopher Curwen, a UCLA graduate researcher in Williams’ lab; Philip W.C. Hon, who recently earned his doctorate from UCLA; Qi-Sheng Chen, then an engineer at Northrop Grumman Aerospace Systems; and Tatsuo Itoh, who holds UCLA’s Northrop Grumman Chair in Electrical Engineering.
The research was funded by the National Science Foundation. Researchers used the UCLA Nanoelectronics Research Facility to make the device.
